1. Mechanical Press (12~750ton)

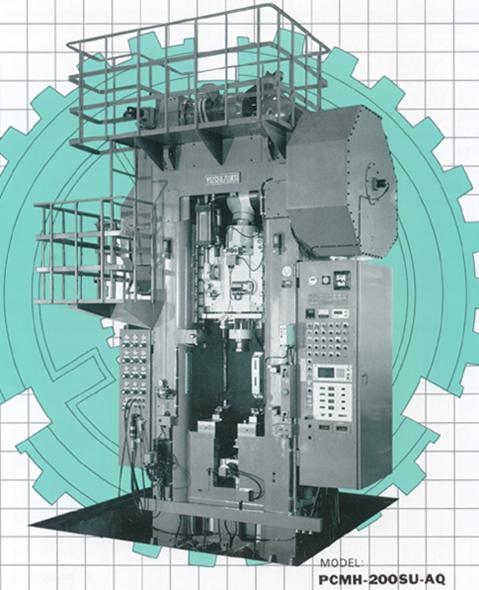

“YOSHIZUKA” Powder compacting PressesModel PCMH

  1. Out line: model PCMH is fully automatic powder compacting press.
  2. Characteristics
  3. Either crank motion or quick motion is available on the upper ram motion at your request.
  4. Die Holding Down(Lower Pressing & Pre Pressing) adjustment.
  5. As every adjustment incl. for upper ram is displayed by digital, it is very easy to control compacting condition.
  6. A press on which each above adjustment can be made by each motor respectively is available by request, instead of by handle.
  7. As the cam on press body prevents the die from floating up, die is able to function precisely.
  8. Belt-type step-less variable speed changer is extremely durable and it is easy to carry out maintenance.
  9. Die set can be mounted and dismounted either in front of press or in the rear in accordance with your request.

“YOSHIZUKA” Powder compacting PressesModel PCH

  1. Out line: The “PCH” Presses consist of the main mechanical driving unit and a hydraulic unit

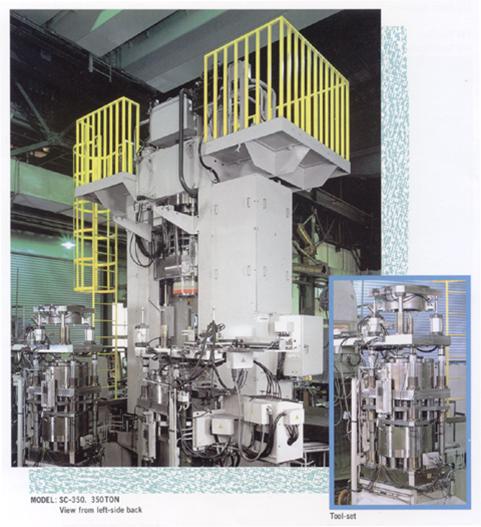

  1. CNC HYDRAULIC SERVO PRESS(SC 20 Ton~ SC 850 Ton)

On CNC HYDRAULIC SERVO PRESS _SC-Series, the pressing position is fixed through conveying the computer`s signal commands the Hyd. Servo Valve, thus controlled the scale position. 8axes in total are controlled by the Hyd. Servo; UPPER No.1 PUNCH, UPPER No.2 PUNCH, UPPER No.3 PUNCH, DIE, LOWER No.1 PUNCH, LOWER No.2 PUNCH, LOWER No.3 PUNCH, CORE and FEEDER. LOWER No.1 PUNCH and LOWER No.4 PUNCH are fuxed
